Residential Property Measured Survey in Durham
Topographic & Measured Building Survey
This particular survey project was for a domestic property in the Bowburn area of Durham, although much smaller than a typical measured building survey on a commercial premises, the process and quality control remain the same. From the initial site visit for architects and planners, the survey stages are next to gather the crucial information needed to progress with the project.
The survey was commissioned by a local architect to gather the information necessary for the planning stages. The equipment used was our Trimble X7 Laser Scanner which is a highly accurate piece of surveying equipment that can capture the information needed through multiple scans around the internal and external areas of the property which are processed & registered together to create what’s known as a pointcloud. The data from the pointcloud is then used to extract orthographic images for the building elevations and for the production of 2D floor plans and sections.
We produced highly detailed 2D Floor Plans alongside Building Elevations with corresponding Orthographic Images and Building Sections. All of the information was delivered in AutoCAD DWG format including PDF files for each element of the survey.

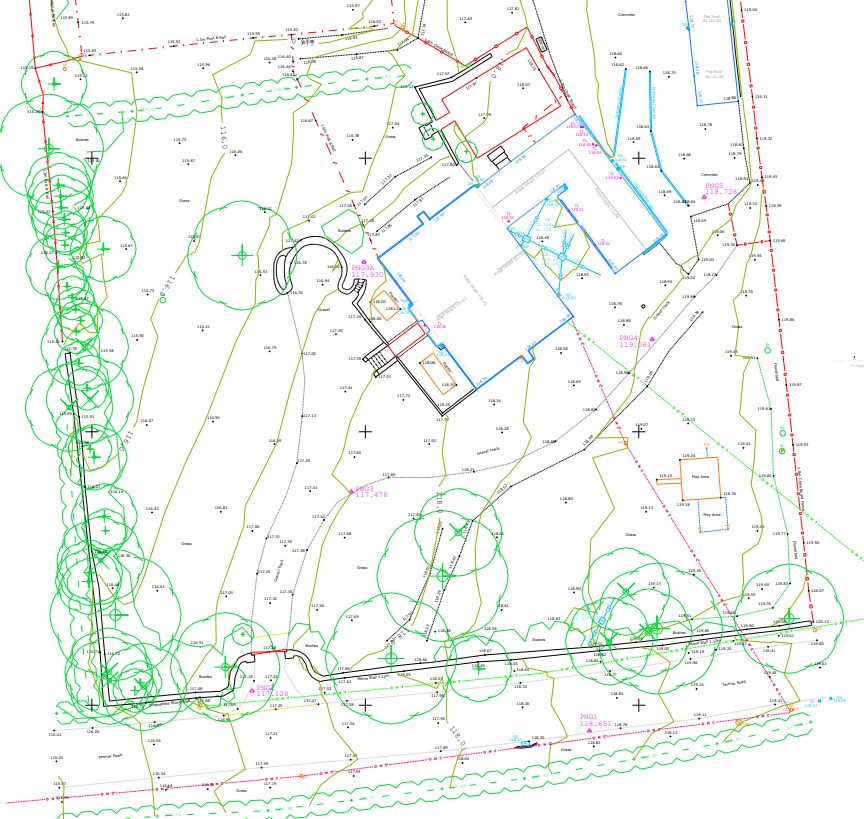

There was a Topographic Survey carried out on this project in Durham to tie in with the measured survey. This type of survey gives accurate information relating to the site boundary, site levels and any change in surfaces etc. The survey also captures details of the surrounding property’s including the Ridge and Eave heights to aid with future planning decisions.
For all residential Topographic Surveys we always survey the extents of the main road and entranceway to the site which helps with sightlines and level changes from the highway boundary to the owners land.
The survey was provided in 3d AutoCAD DWG format alongside a PDF copy of the plan.
We offer a fast turnaround for residential properties as they generally take less time to survey on site and the plan production is less data heavy.
If you have a similar requirement for a Residential site survey please get in touch for a hassle free quote.
